RQ-45 Fully Biodegradable Film Blowing Machine
Features and Uses:
lts extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness,durable in corrosion resistance. The specially-designed screw is of sound quality In plasticizing,which helps increase the production capacity, it is applied to blowing the plastic films like low density polyethylene(LDPE) and high density polyethylene (HDPE) and linear low density polyethylene(LLDPE) and all degradable plastic film. lt is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Features and Uses:
lts extruder, cylinder and screw rods are made of quality alloy steel that have been nitrized and processed in a precision way. Hence it is sound in hardness,durable in corrosion resistance. The specially-designed screw is of sound quality In plasticizing,which helps increase the production capacity, it is applied to blowing the plastic films like low density polyethylene(LDPE) and high density polyethylene (HDPE) and linear low density polyethylene(LLDPE) and all degradable plastic film. lt is widely applied to producing the packing bags for foodstuff, clothing, rubbish bag and vest ones.
Product Category
Film Blowing Machine
Plastic Bag Making Machine
Vest Bag
Side Seal Bag
Bottom Seal Bag
Bags On Roll
Paper Bag Making Machine
Printing Machine
Recycling Machine
Slitting Machine
Injection Machine
Monolayer Blown Film Machine
Simplicity, stability, and cost efficiency – Ideal for general packaging, garbage bags, T-shirt bags.
1. One-touch intelligent control, high output
User-friendly interface with smart temperature control reduces reliance on operator experience. Runs 24/7 with excellent film flatness.
2. Ultra energy-saving, half the electricity cost
Optimized screw L/D ratio and air ring design cut energy consumption by 20–30% vs. conventional machines. Long-term savings can pay for another machine.
3. Zero-entry maintenance
Modular design with widely available standard components. Quick part replacement by any general mechanic – minimal downtime.
4. Precise gauge uniformity, accurate grammage
High-precision micro-grammage controller keeps thickness variation very low, saving material cost and boosting printing/bag-making yield.
5. Fast payback workhorse
Low initial investment, stable output. Ideal for standard bags – typically recovers investment within 6–8 months.
| Main Technical Parameter | |
| Model | RQ-45 |
| Screw Diameter | Φ45 |
| Flm Width | 100-550mm |
| Single-face Thickness of film | 0.01-0.25mm |
| Output | 35-55kg/h |
| L/D | 30:1(alloy) |
| Power of Main Motor | 18.5kw |
| Power of Traction Motor | 1.5kw |
| Fan Power | 4kw |
| Overall Dimension (L x W x H） | 5000×2600×5200mm |
| Weight | 1.8T |

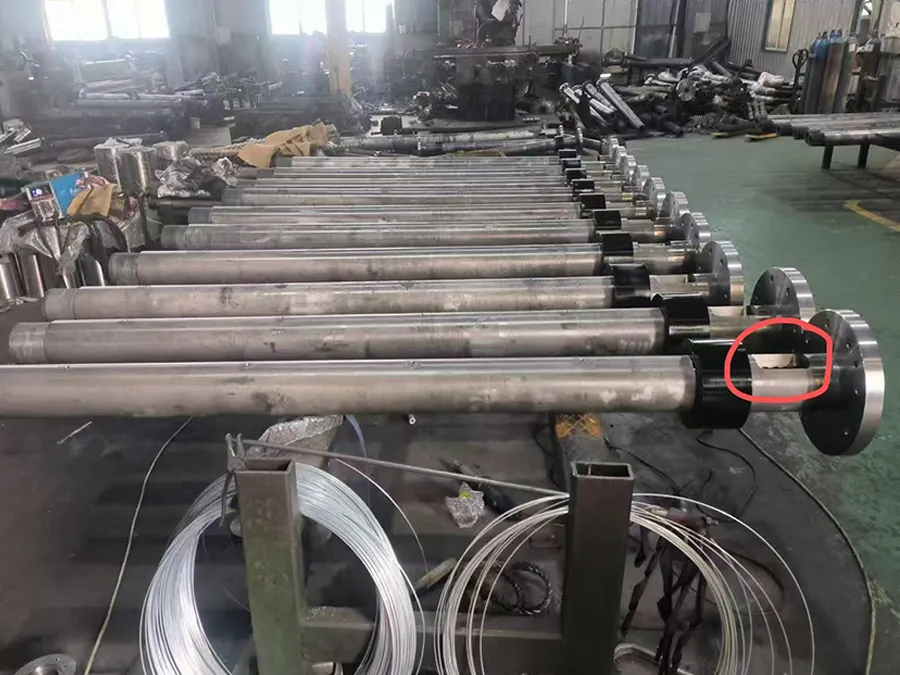

| The screw is made of 38crmoala alloy with chrome plating. |  |
 |
 |

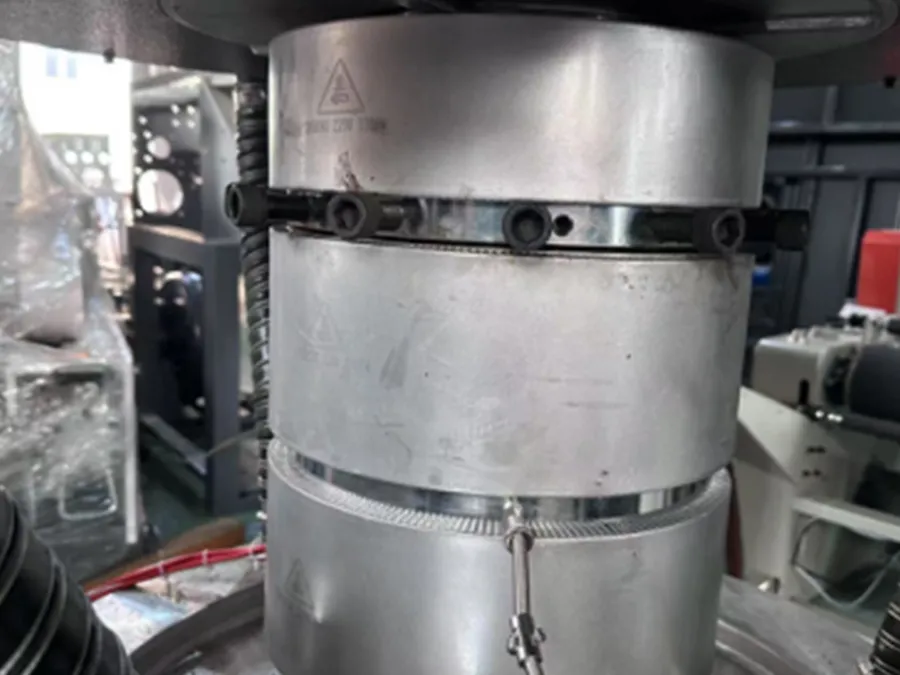

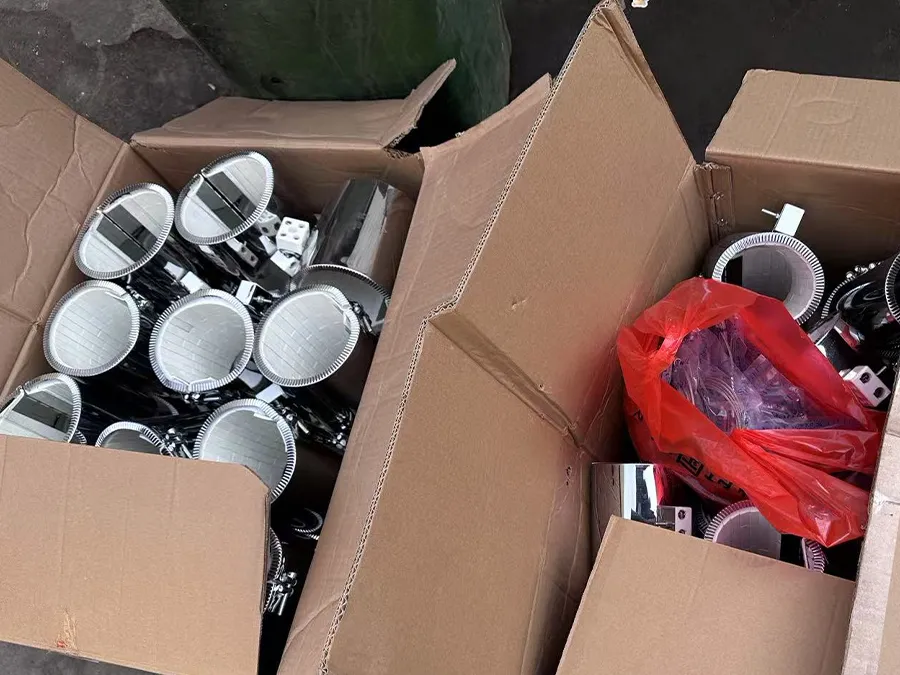

The heating rings of the screw mold head are made of thickened ceramics. |

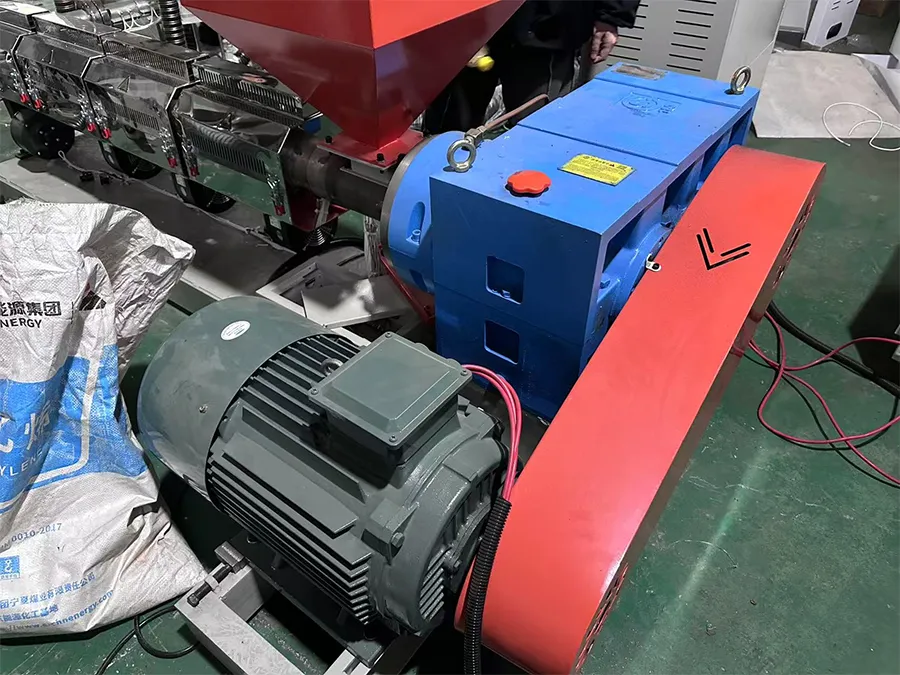

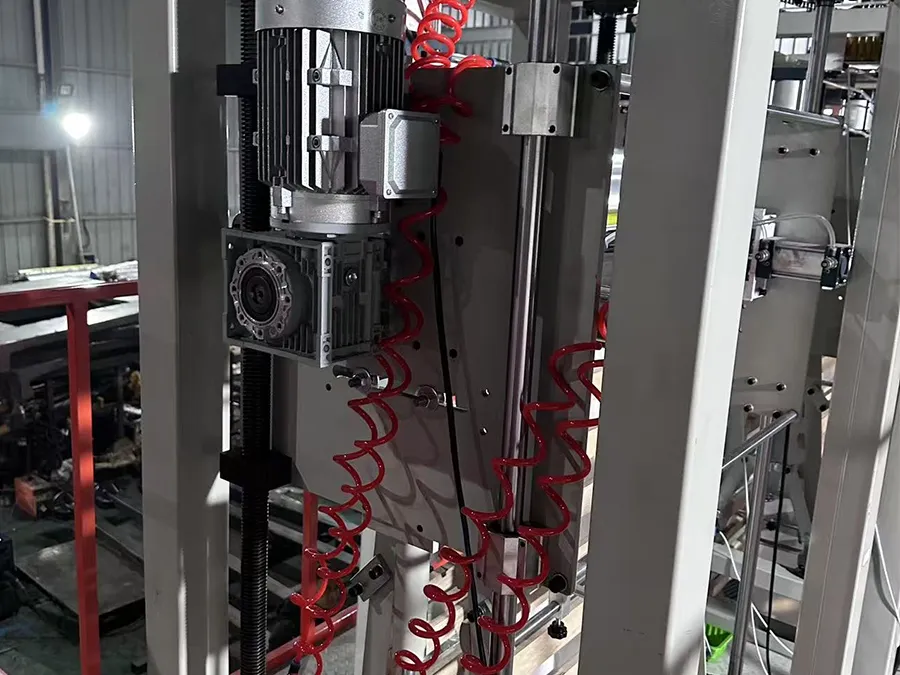

| The reduction gearbox is an open-line cylindrical helical gear with hard tooth surface precision grinding. |  |
 |

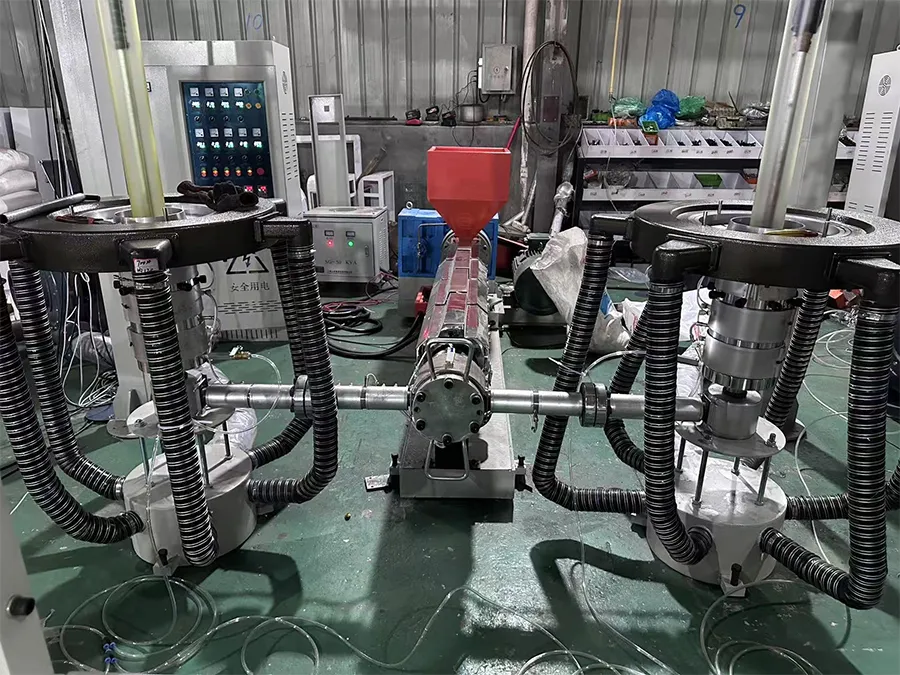

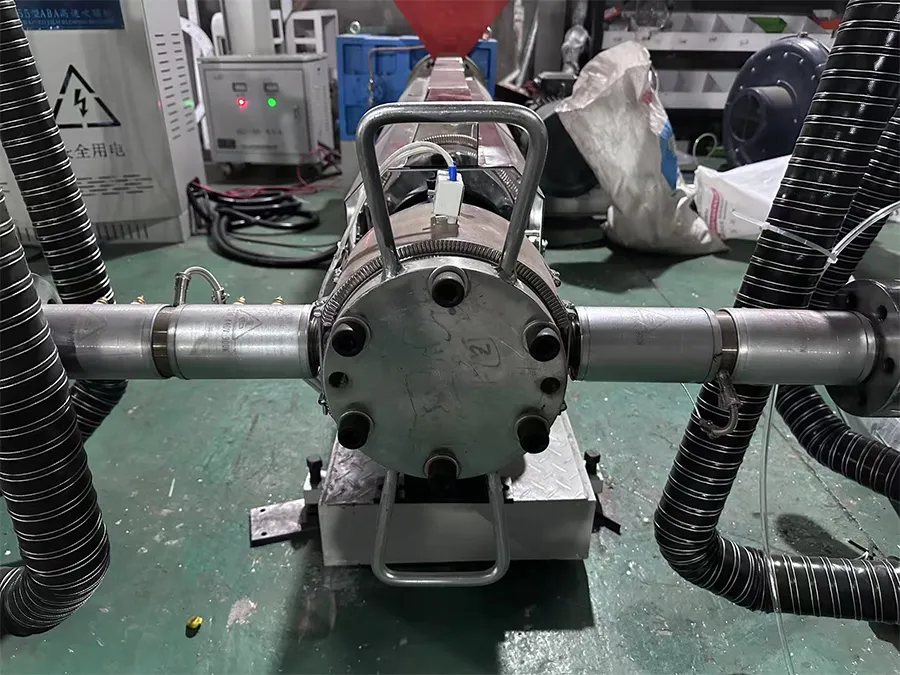

The three-way valve is processed with a comprehensive chrome plating process to improve the plasticization effect and brightness of the material. |
| The mirror surface of the mold head is chrome plated, which is beneficial for improving brightness and plasticization, and the adjustment uses a ball-type mechanism. |  |
 |

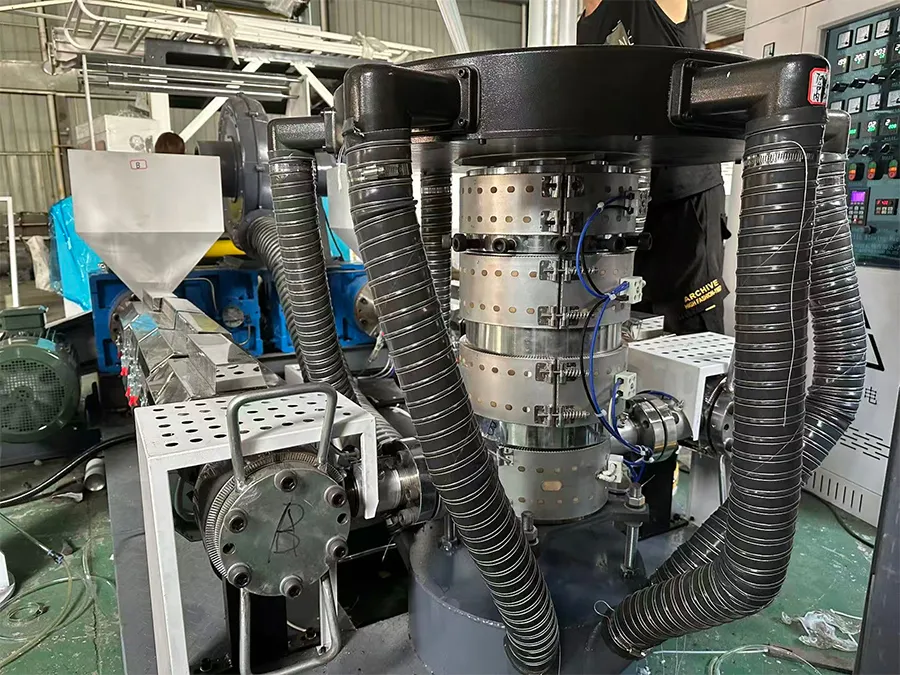

The double outlet air ring adopts Italian processing technology and design, which is beneficial for the stability and transparency of the film. |

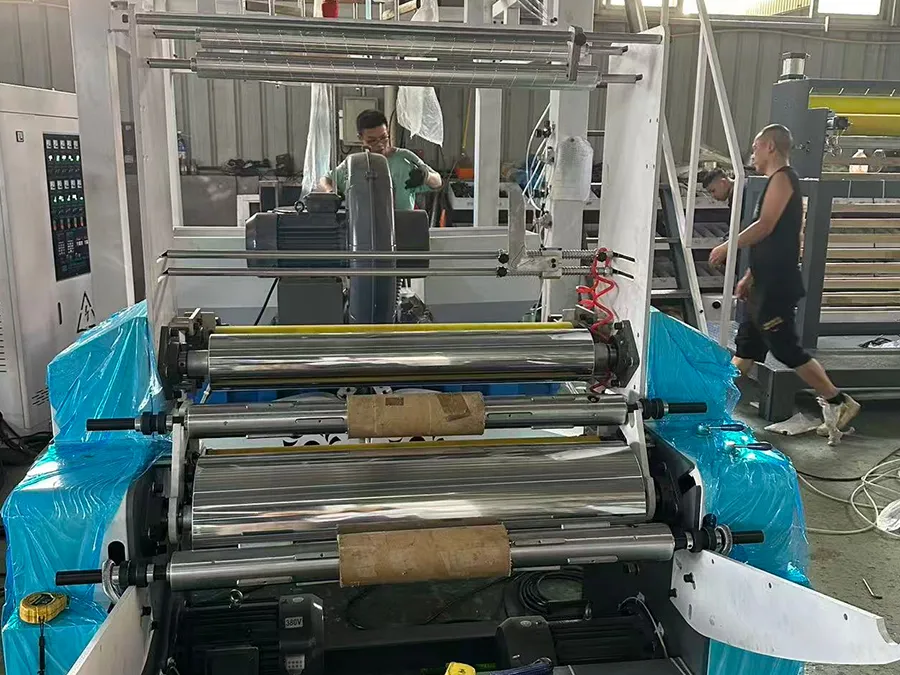

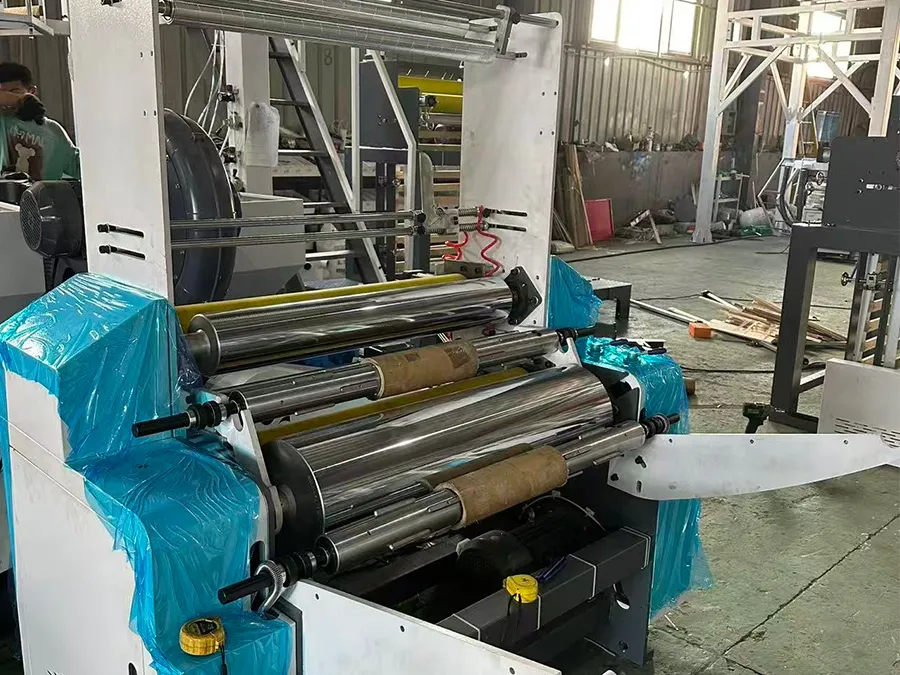

| The patterned rubber roller and the reflective roller of the take-up are chrome plated on the mirror surface, and the guide rollers are all return lines. |  |
 |
 |
 |

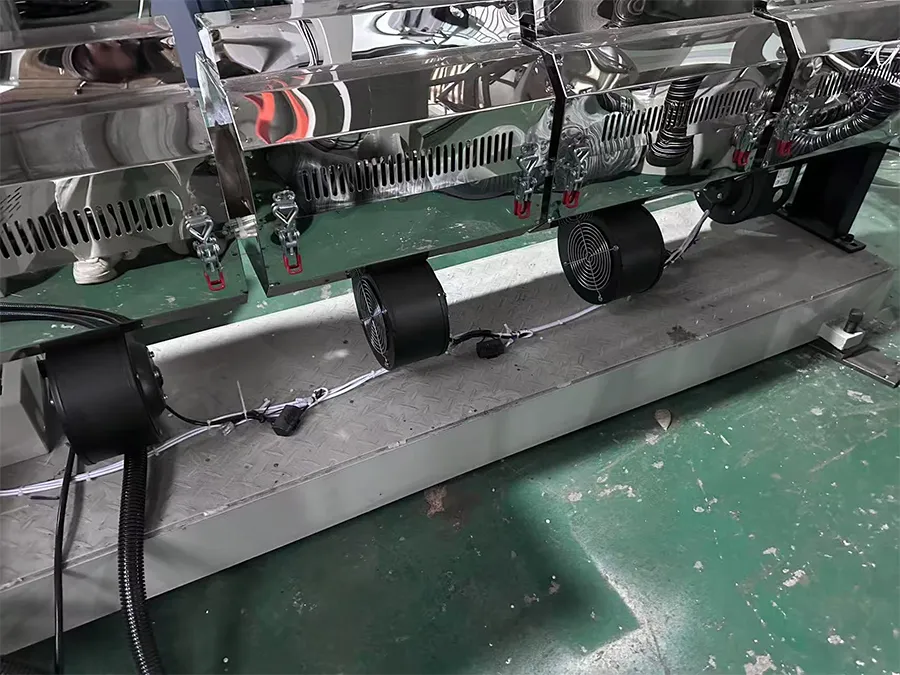

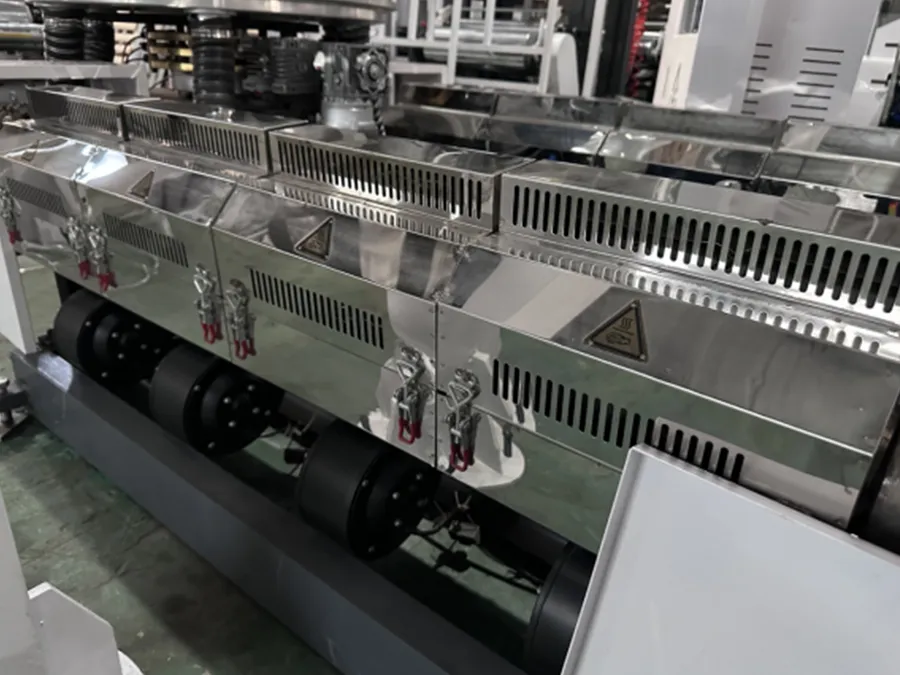

The cover shell is made of stainless steel, which is more aesthetically pleasing, more durable, and more exquisite than traditional cover shells. |

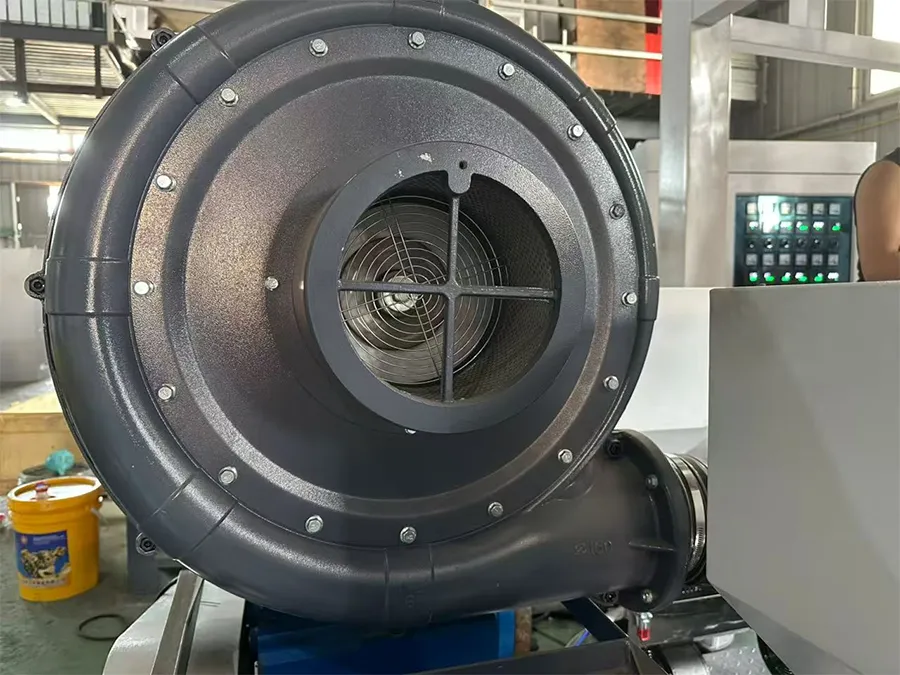

| Taiwan type aluminum air blower |  |
 |
 |
Rewind part |
Monolayer Blown Film Machine
Simplicity, stability, and cost efficiency – Ideal for general packaging, garbage bags, T-shirt bags.
1. One-touch intelligent control, high output
User-friendly interface with smart temperature control reduces reliance on operator experience. Runs 24/7 with excellent film flatness.
2. Ultra energy-saving, half the electricity cost
Optimized screw L/D ratio and air ring design cut energy consumption by 20–30% vs. conventional machines. Long-term savings can pay for another machine.
3. Zero-entry maintenance
Modular design with widely available standard components. Quick part replacement by any general mechanic – minimal downtime.
4. Precise gauge uniformity, accurate grammage
High-precision micro-grammage controller keeps thickness variation very low, saving material cost and boosting printing/bag-making yield.
5. Fast payback workhorse
Low initial investment, stable output. Ideal for standard bags – typically recovers investment within 6–8 months.
| Main Technical Parameter | |
| Model | RQ-45 |
| Screw Diameter | Φ45 |
| Flm Width | 100-550mm |
| Single-face Thickness of film | 0.01-0.25mm |
| Output | 35-55kg/h |
| L/D | 30:1(alloy) |
| Power of Main Motor | 18.5kw |
| Power of Traction Motor | 1.5kw |
| Fan Power | 4kw |
| Overall Dimension (L x W x H） | 5000×2600×5200mm |
| Weight | 1.8T |
| The screw is made of 38crmoala alloy with chrome plating. | |
|
|
The heating rings of the screw mold head are made of thickened ceramics. |
| The reduction gearbox is an open-line cylindrical helical gear with hard tooth surface precision grinding. | |
|
The three-way valve is processed with a comprehensive chrome plating process to improve the plasticization effect and brightness of the material. |
| The mirror surface of the mold head is chrome plated, which is beneficial for improving brightness and plasticization, and the adjustment uses a ball-type mechanism. | |
|
The double outlet air ring adopts Italian processing technology and design, which is beneficial for the stability and transparency of the film. |
| The patterned rubber roller and the reflective roller of the take-up are chrome plated on the mirror surface, and the guide rollers are all return lines. | |
|
|
|
The cover shell is made of stainless steel, which is more aesthetically pleasing, more durable, and more exquisite than traditional cover shells. |
| Taiwan type aluminum air blower | |
|
|
Rewind part |
Q1: What is a blown film machine used for?
Q2: Why does my blown film have uneven thickness?
Q3: How to fix frequent film bubble breaks?
Q4: What is the effect of blow‑up ratio (BUR)?
A: It is used to produce plastic film (e.g., LDPE, HDPE, LLDPE) by extruding molten plastic through a circular die and inflating it into a bubble. The film is then flattened and wound into rolls for further processing like bag making or lamination.
